Fiche SP1150-210 (BRICK) - R

Agrandir l'image

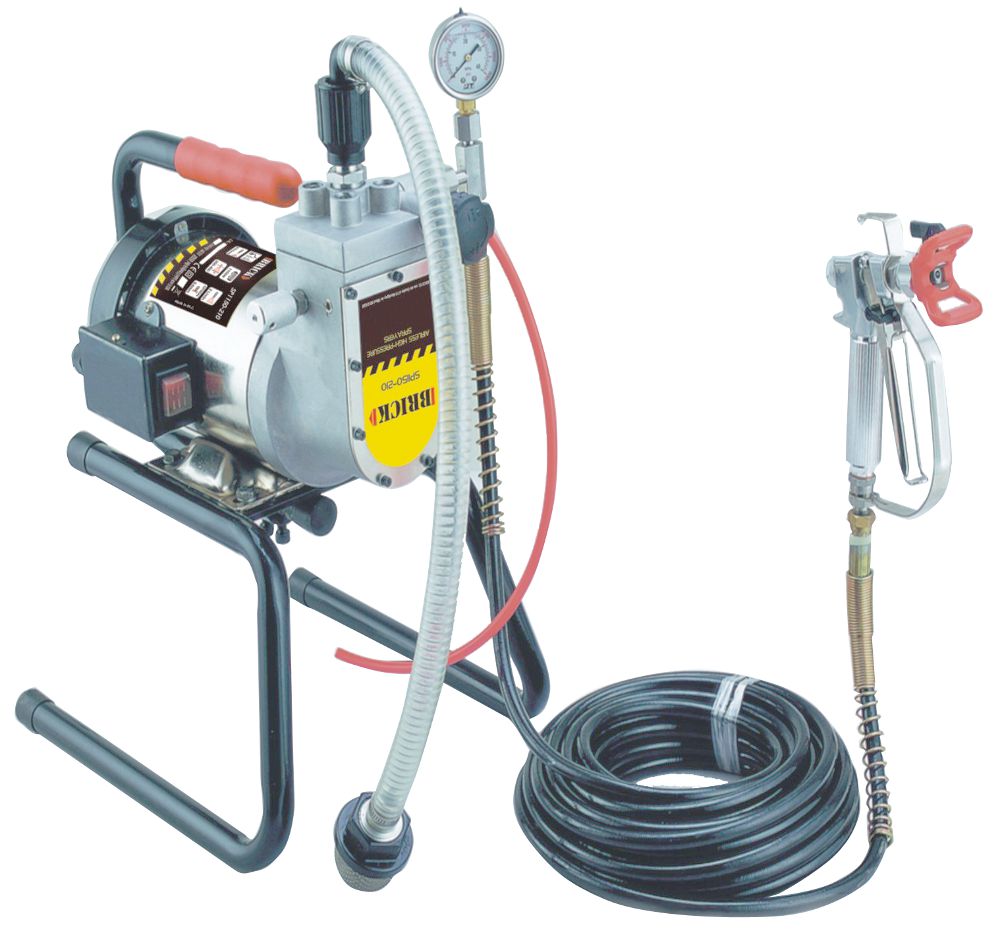

	STATION PEINTURE AIRLESS Pour appliquer tous types de peintures, laques, vernis. Application interieure et exterieure, Pompe Ã diaphragme. Puissance 1150 W. Debit maxi 2 L/min (120L/h). Pression maxi 210 Bars. Bec sug : 0,4 mm. Distance optimale de projection : 350-400 mm. Systeme AIRLESS : finition optimale. EAN : 5411074127527 Garantie : 3 ans

Fichiers :

131.9 Ko
fiche-technique.pdf

546.2 Ko
manuel.pdf

Pour lire les documents PDF, téléchargez Adobe Reader.

Pièces :

Nom de la vue	Num	Référence	Description de la pièce
		SP1150-07021000	PISTOLET PULVERISATEUR

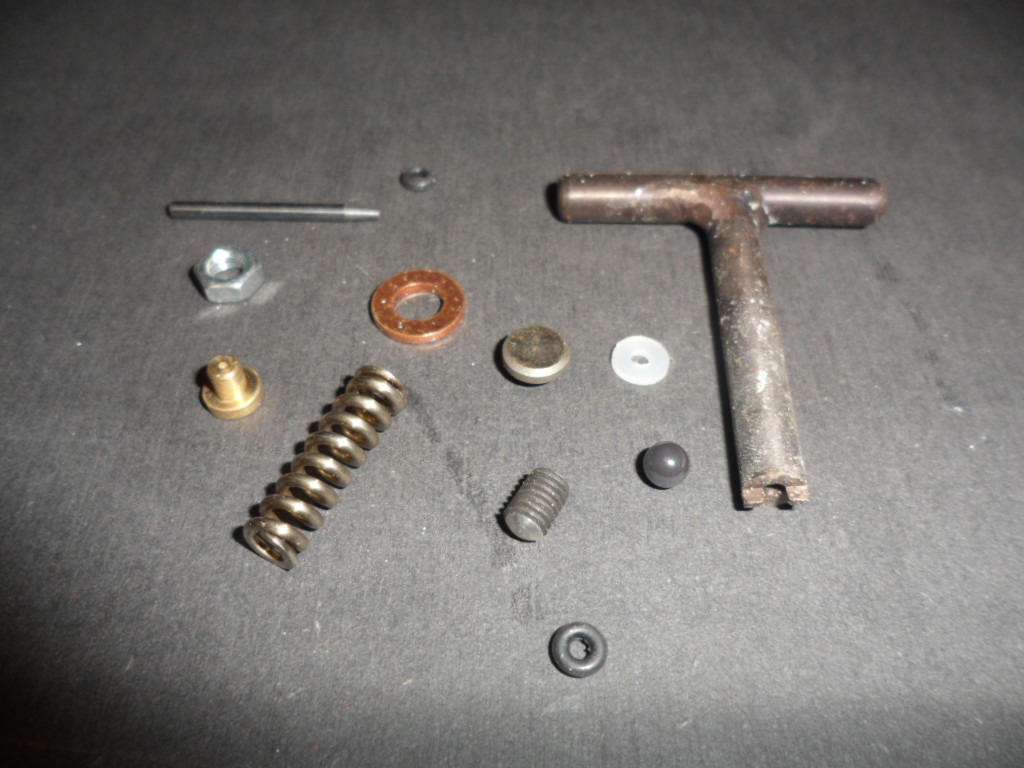

		SP1150-07021001	KIT REPARATION PISTOLET

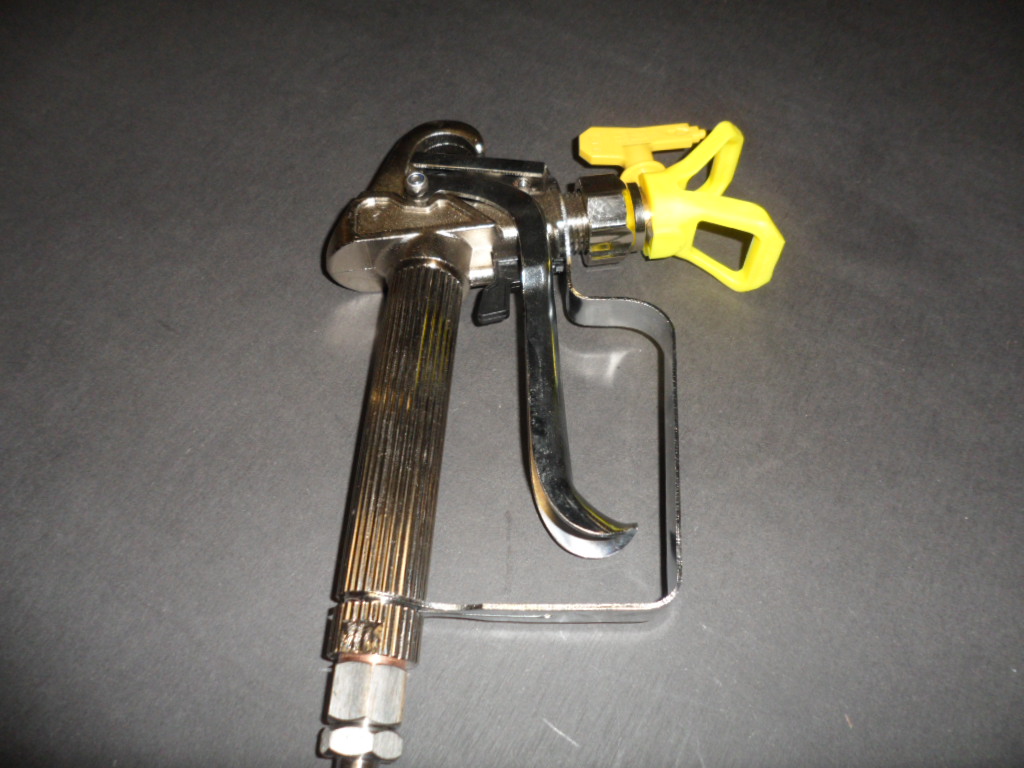

		SP1150-07031000	PAPILLON POUR PISTOLET

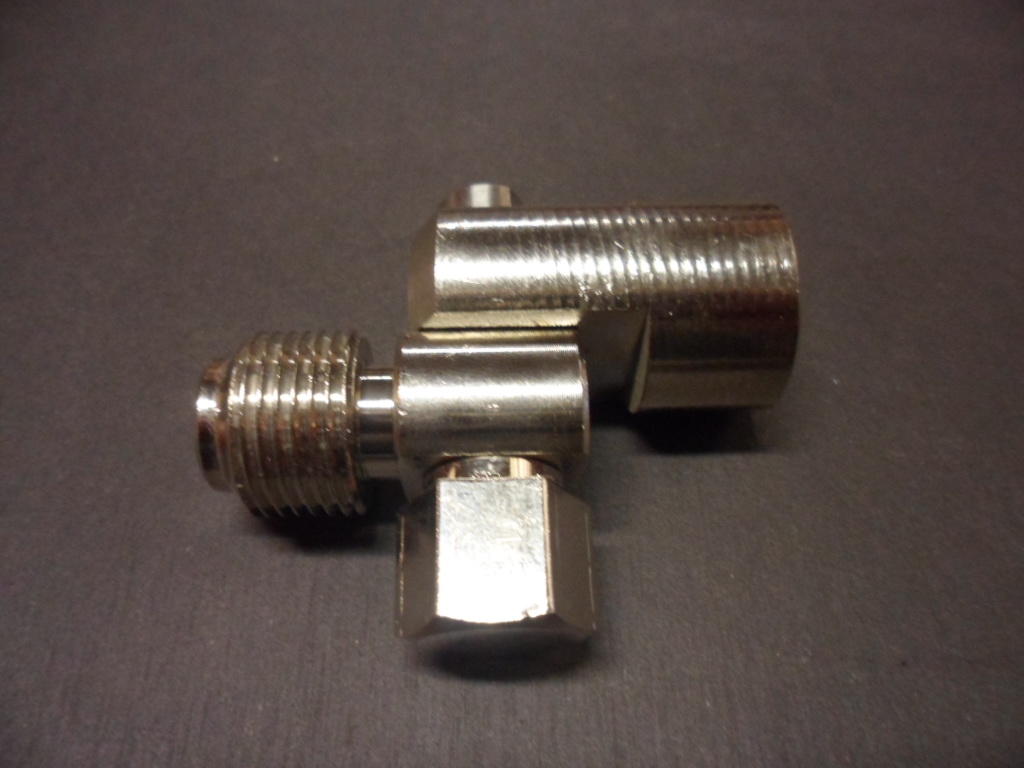

		SP1150-07051000	PIVOT DE PISTOLET

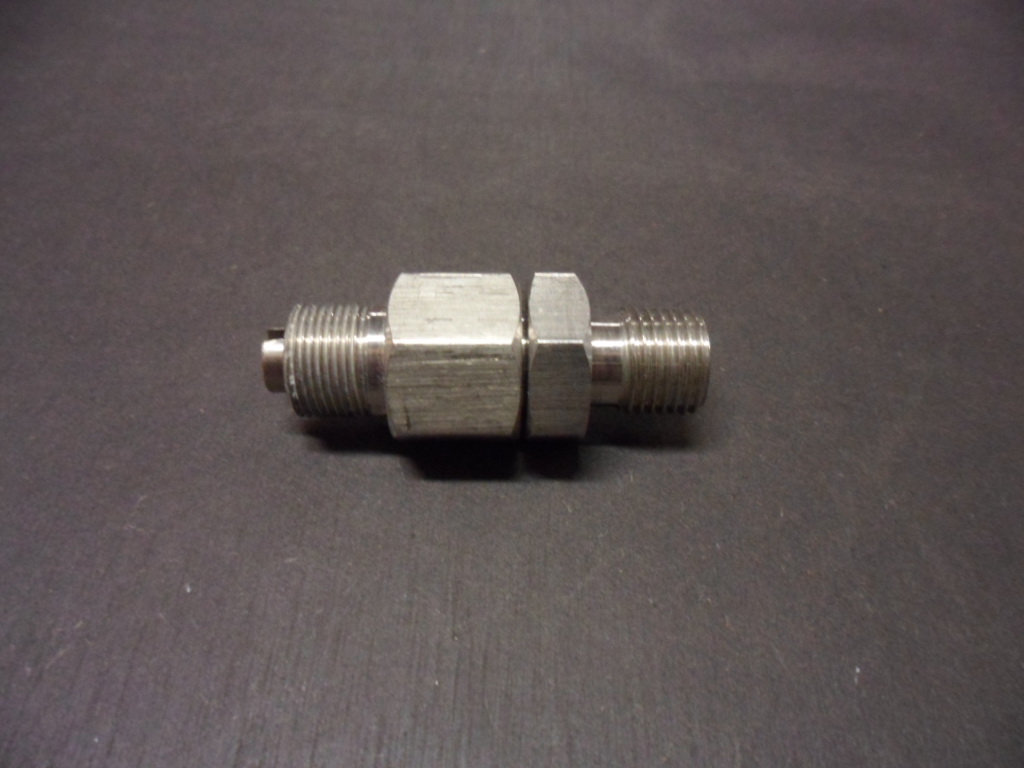

		SP1150-07051001	PIVOT CONNECTEUR 360°

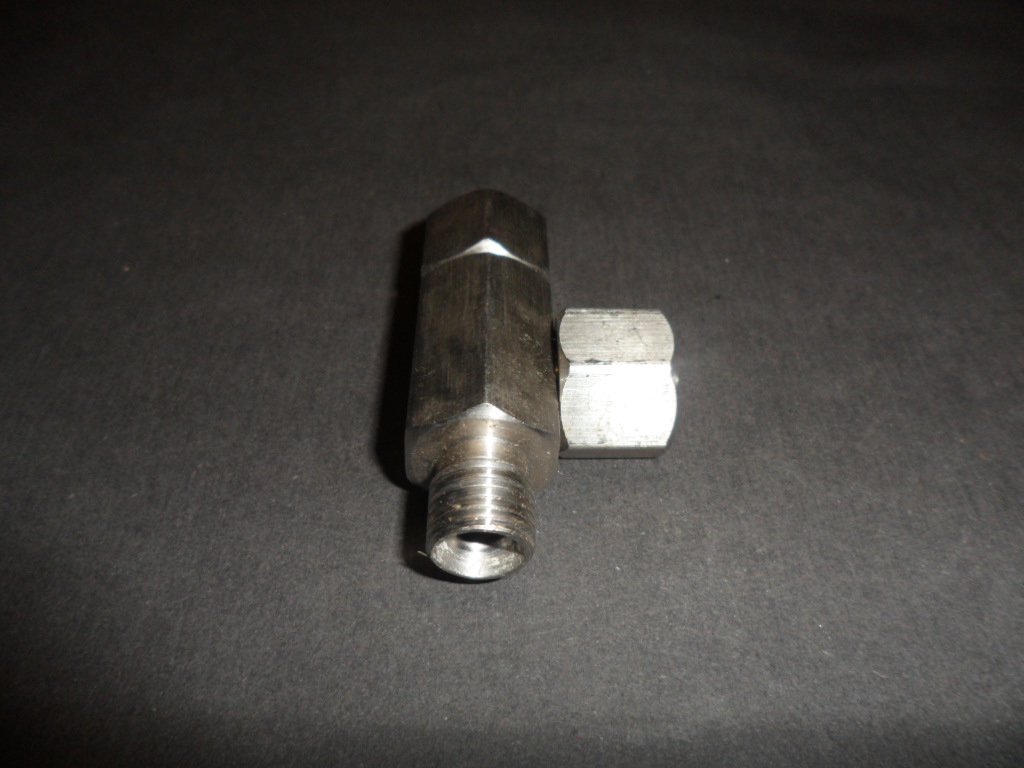

		SP1150-17071000	TRIPLE JOINT

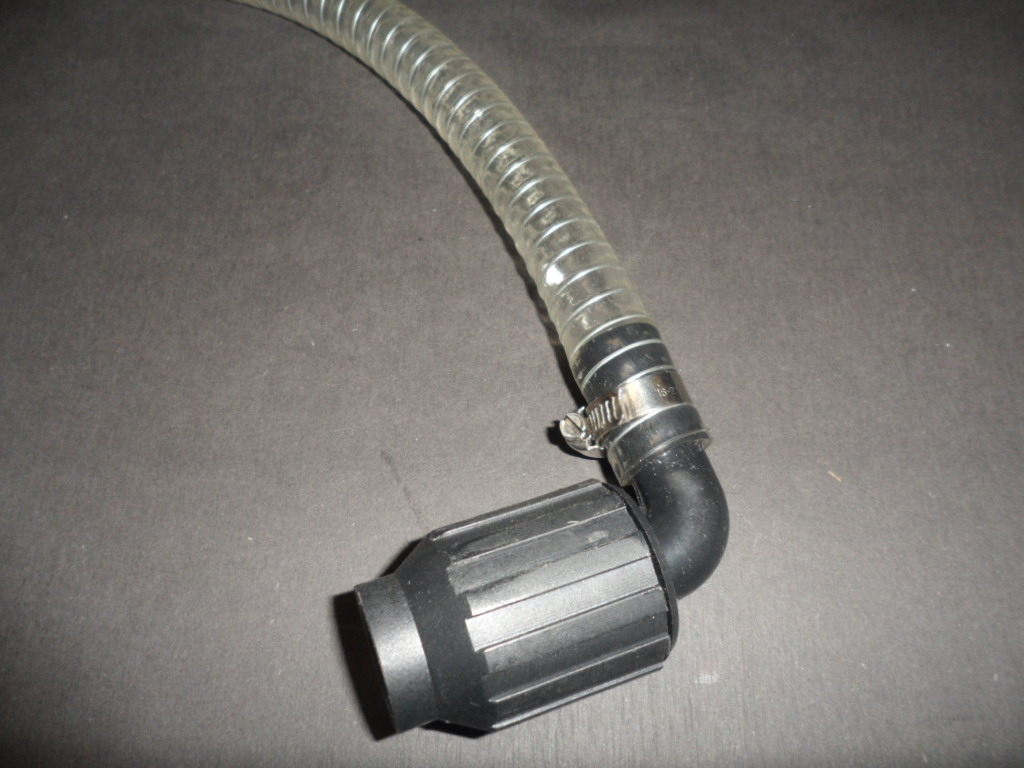

		SP1150-17081000	SUCTION TUBE ASSEMBLY

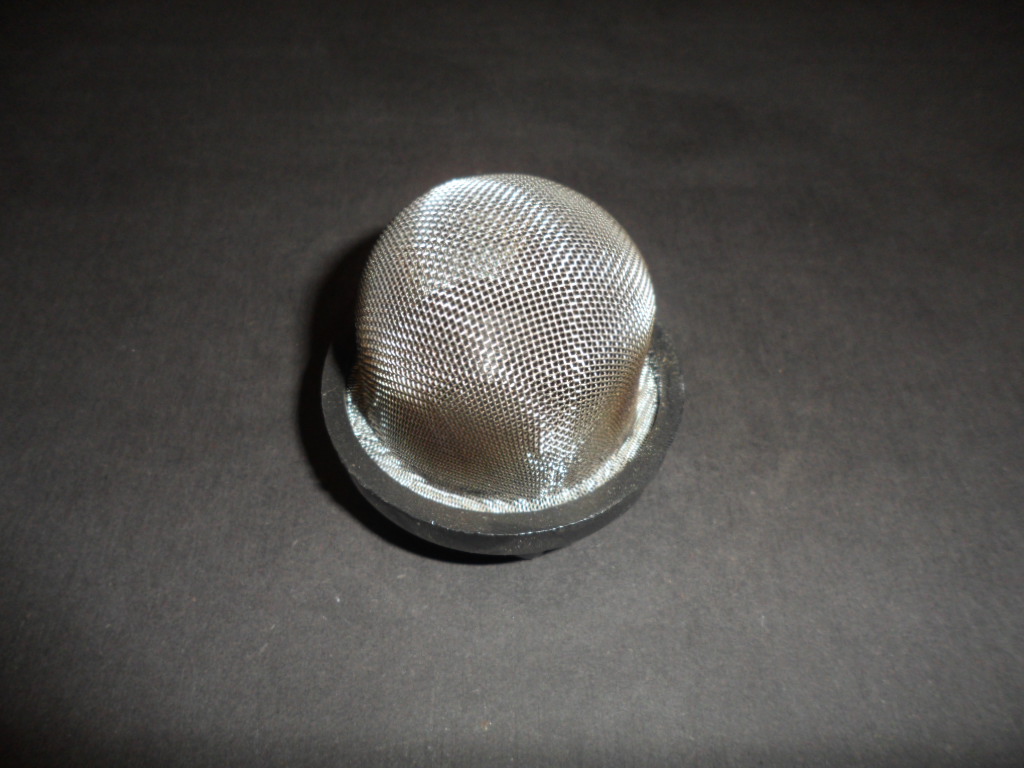

		SP1150-17081001	FILTRE

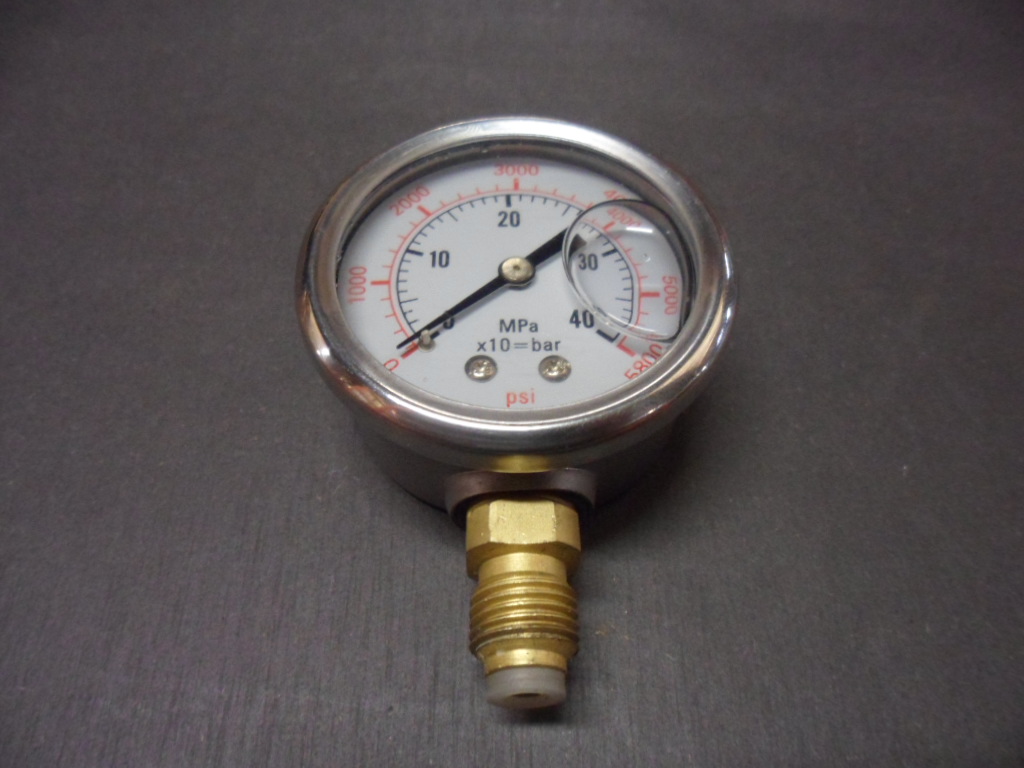

		SP1150-17200001	JAUGE DE PRESSION
		SP1150-07011001	GICLEUR

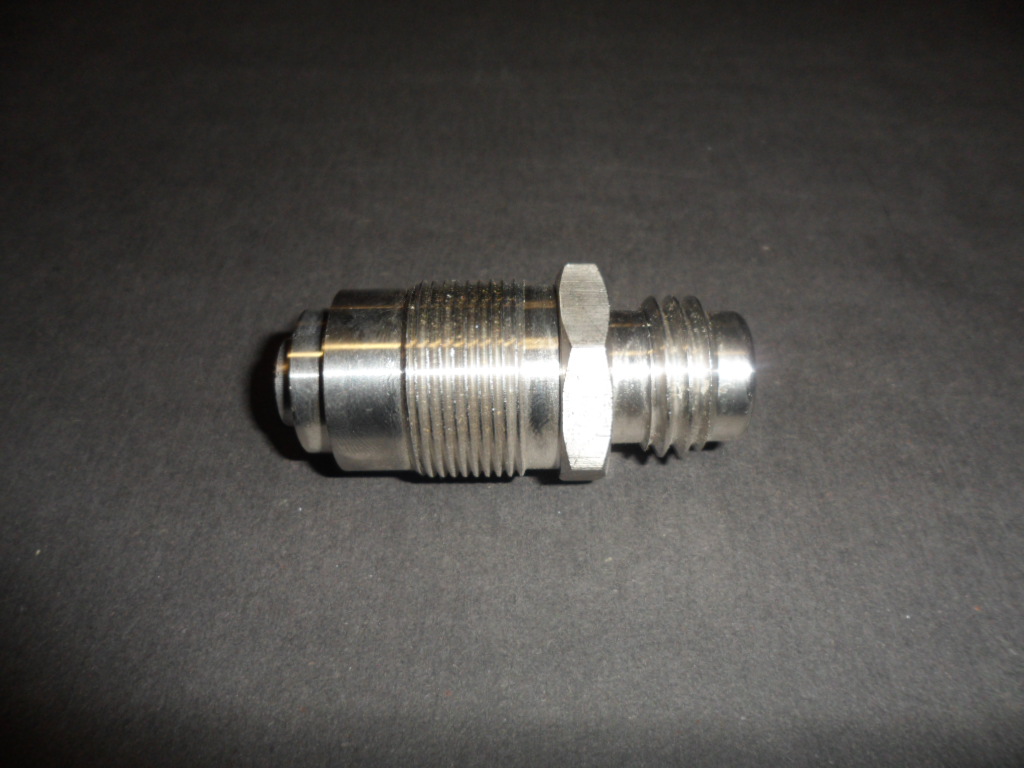

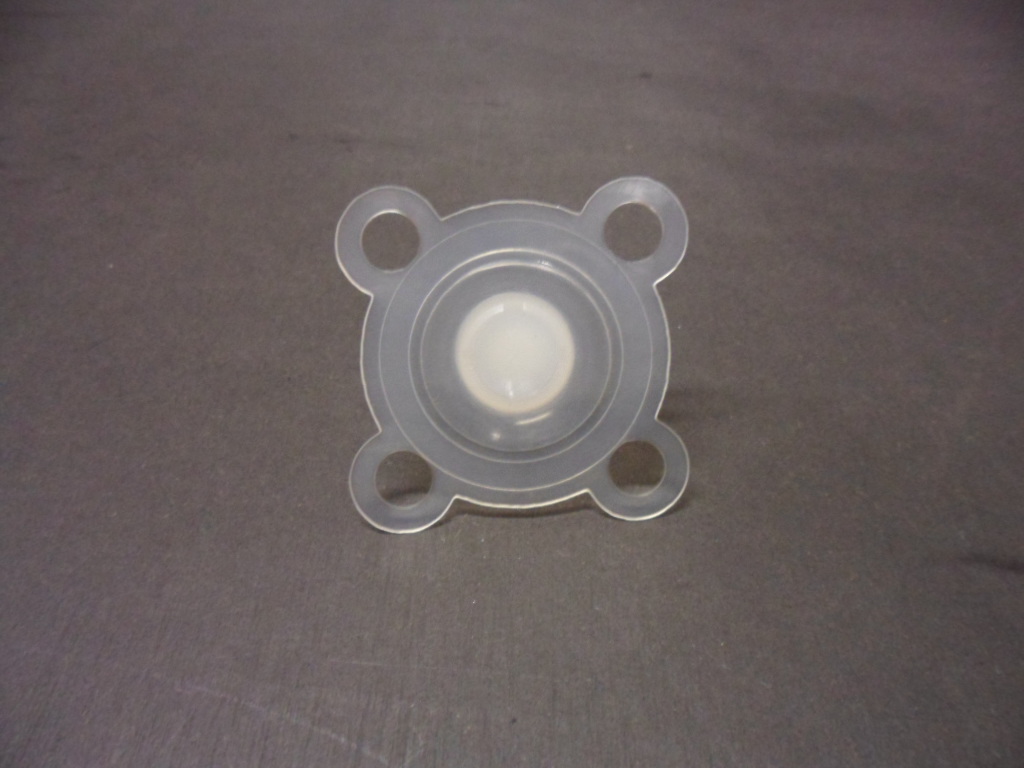

PUMP	3	SP1150-17022000	DIAPHRAGM
PUMP HEAD	1	SP1150-17021000	INLET VALVE ASSEMBLY
PUMP HEAD	2	SP1150-17050000	SEALING WASHER NYLON

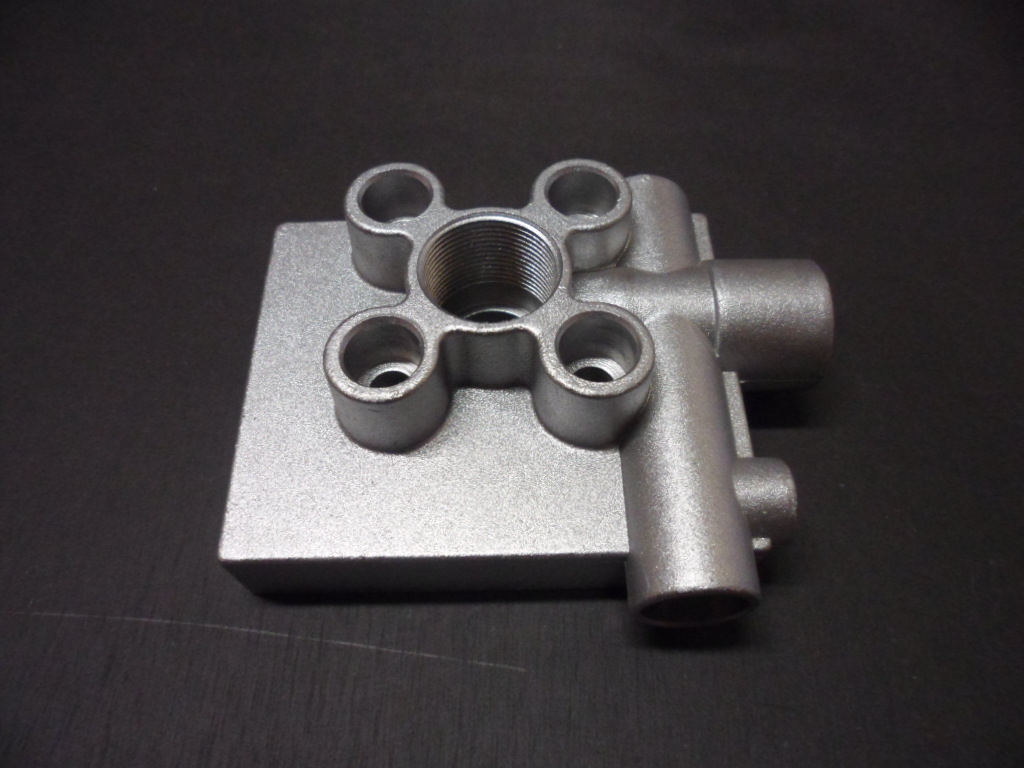

PUMP HEAD	3	SP1150-17011001	PAINT PUMP

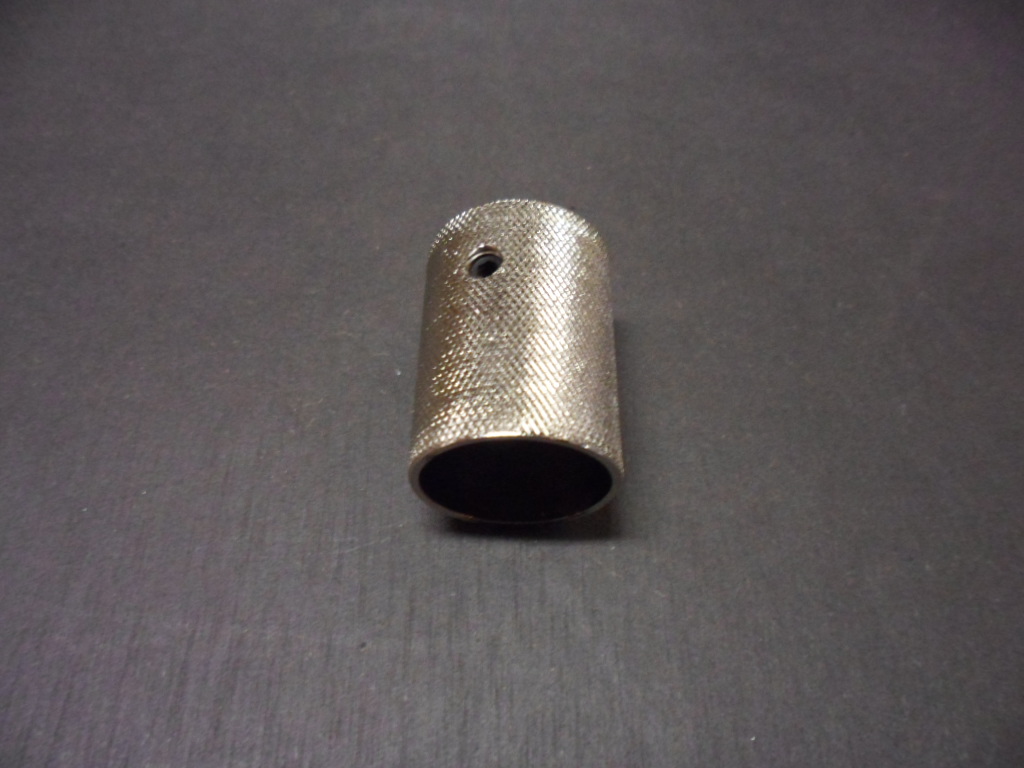

PUMP HEAD	4	SP1150-17032000	PRESSURE CONTROL KNOB
PUMP HEAD	4	SP1150-17061000	PRIME / SPRAY VALVE ASSEMBLY

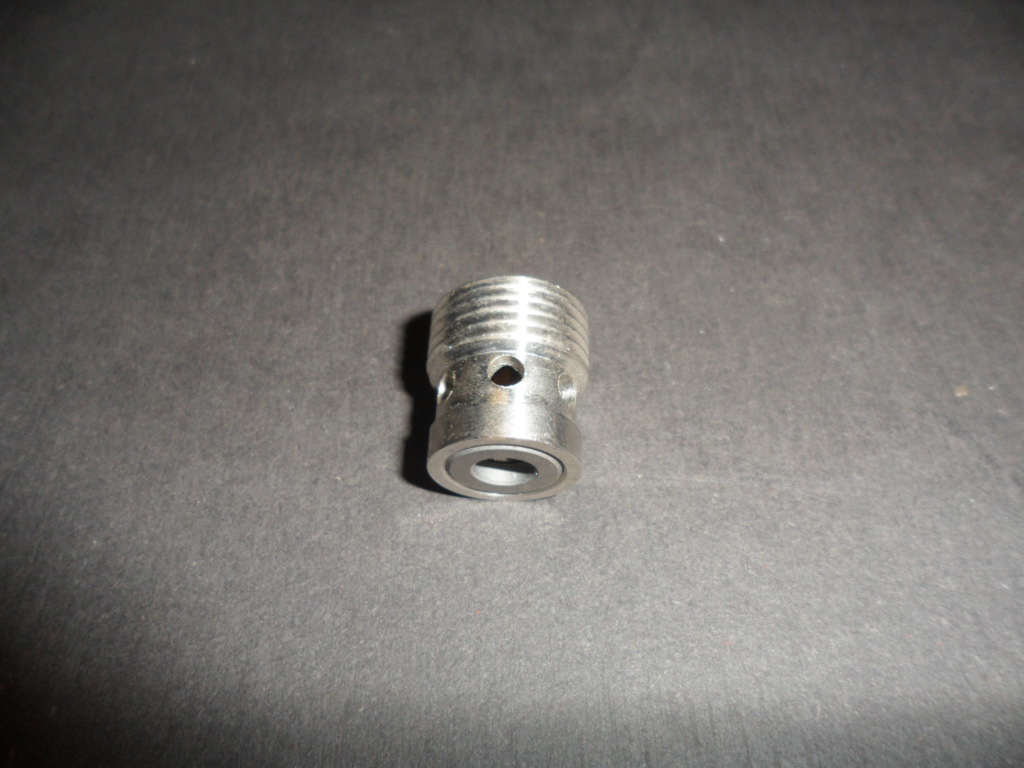

PUMP HEAD	5	SP1150-17041000	OUTLET SEAL
PUMP HEAD	6		BALL SEAL
PUMP HEAD	7		BALL
PUMP HEAD	8		BALL GUIDE
PUMP HEAD	9		OUTLET SPRING
PUMP HEAD	10		O-RING

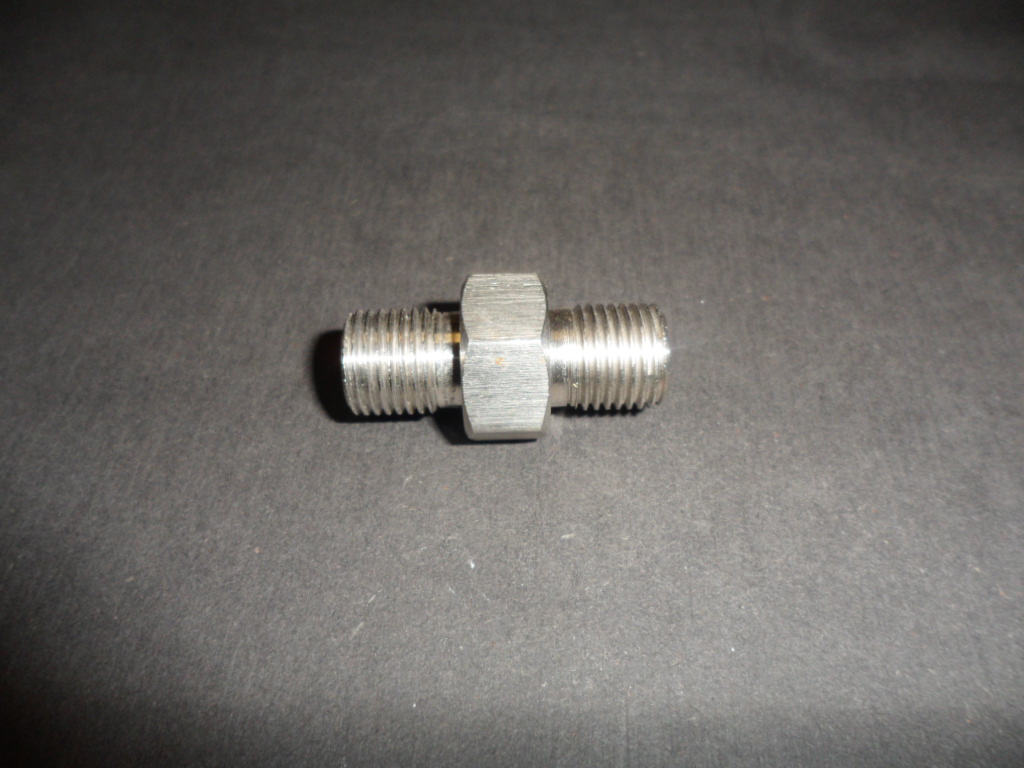

PUMP HEAD	11	SP1150-07051002	CONNECTEUR HAUTE PRESSION

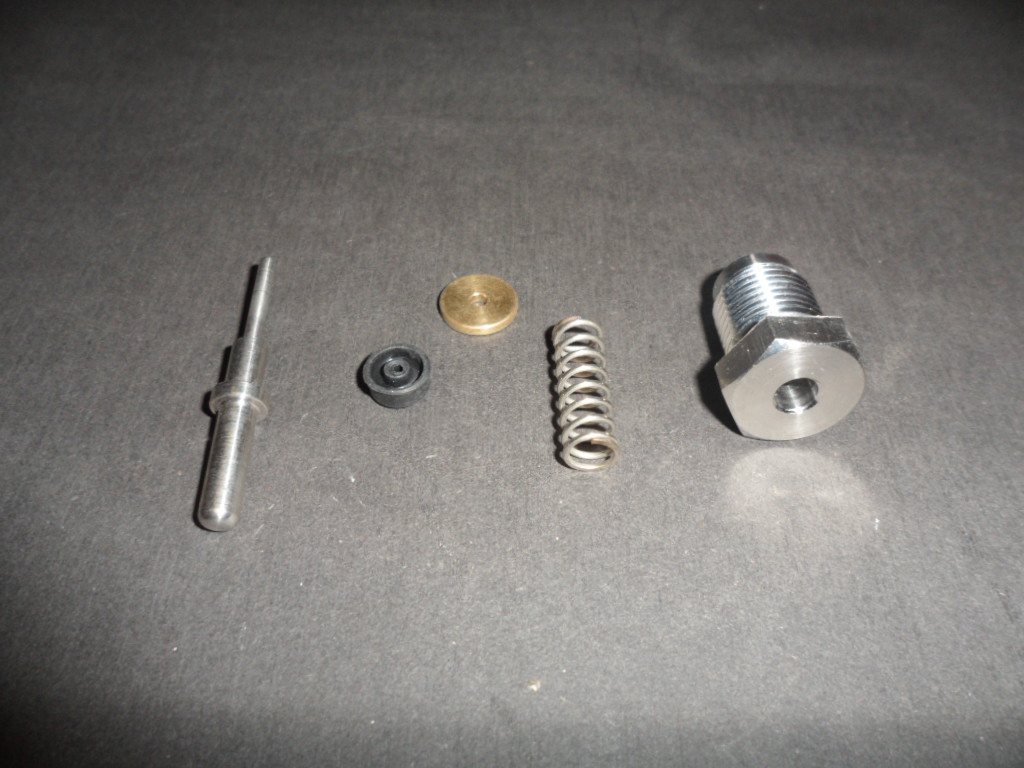

PUMP HEAD	16	SP1150-07011002	PUSHER WASHER

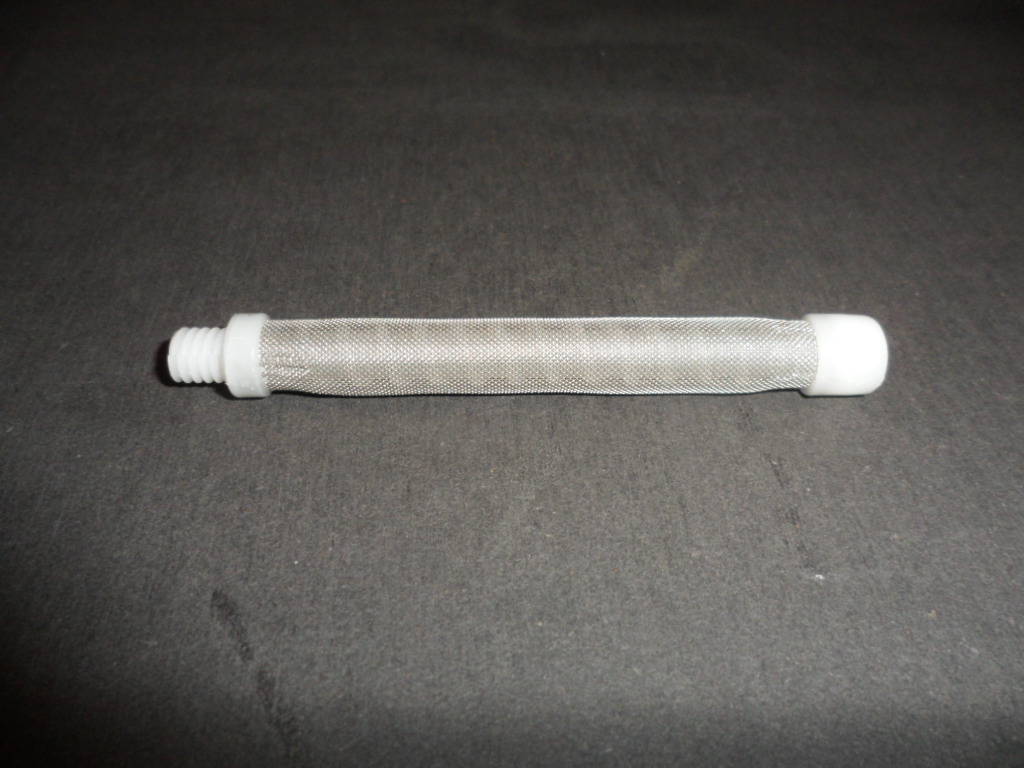

VUE ECLATEE		SP1150-07041018	FILTRE PISTOLET

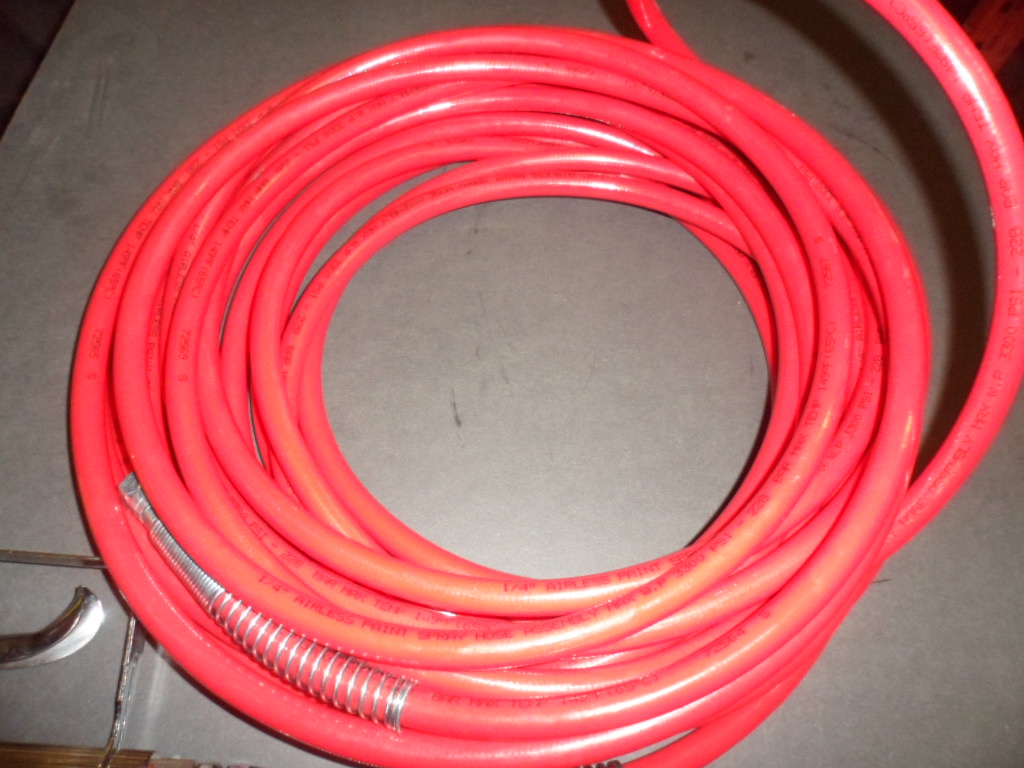

VUE ECLATEE	15	SP1150-17200040-15	FLEXIBLE HAUTE PRESSION

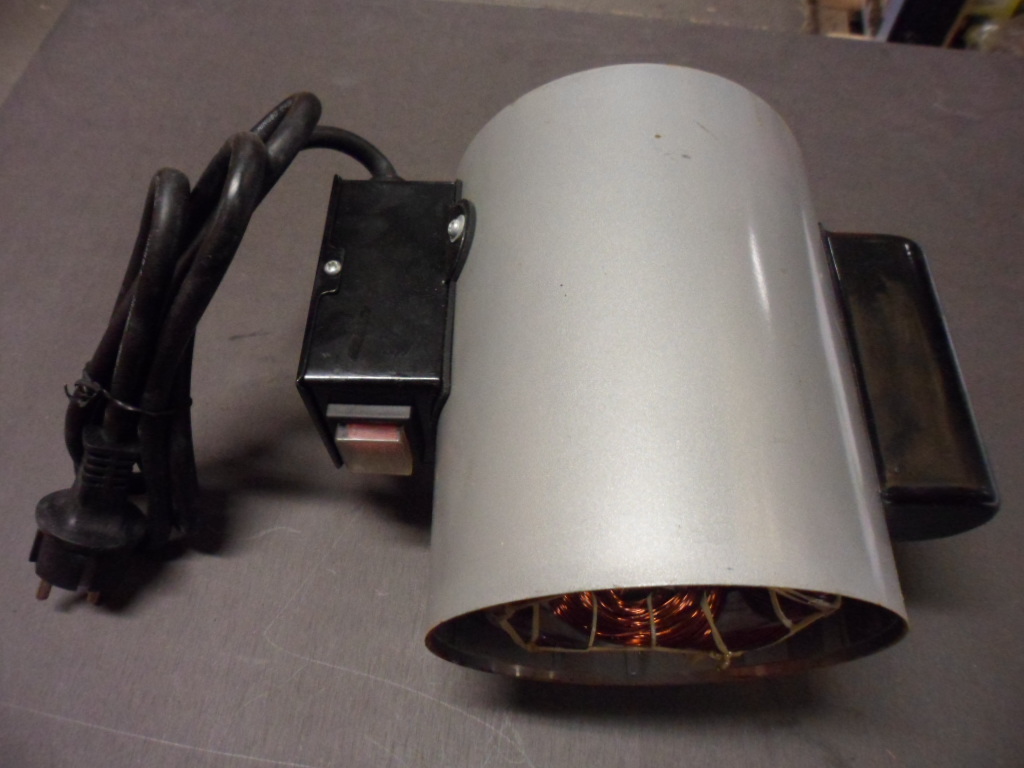

VUE ECLATEE	21	SP1150-210-MOTEUR	MOTOR
